Medical Range of Equipments

Size*(600-900)x(450-500)x(1200-1800)
TypeVertical
Metal detail *Stainless Steel 202/304/316
Shelves Provided**3 – 6 Nos.
Gauge of metal*16 -20 swg
Number of Wheels4 Nos
Breakable castors /wheels* Yes
Type of shelves*Perforated & Non Perforated
Type of legsSS square /round pipe
ApplicationMedical/ Pharma/ Hospital/ Hotels Restaurants /Gen. storage etc.
Country of OriginMade in India

*Subject to the user application . Can be increased or decreased
**Can be increased or decreased

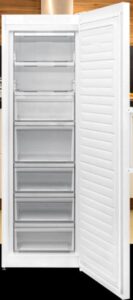

Specification of Laboratory Deep freezer
Minus 25 deg C Upright Freezer
1. Unit is specially designed/meant for laboratory / Research centres /Hospital /Clinical and for the scientist use.
2 Temperature range of – 16 deg C to – 25 deg C temperature
3. Energy consumption is  arr. 1.77 units, / 0:94 kWh / 24hrs.
4. CFC free R 600 A as refrigerant and C – Pentane as blowing agent for insulation.
5. Compatible for data logger for recording temperature parameters’
6. Microprocessor  controller refrigeration system and condenser type, with natural / forced type of airflow
7. Single hard door with Door handle and have the option for reversibility.
8. Unit with rear rollers and levelling feet.
9. With adjustable shelves.
10. Maintain uniform temperature in the cabinet.
11. NABL Certified  with highest quality standards  product is offered.
12. Compatible microprocessor controller /audio visual alarm system can be provided optionally.
13. Control Panel on the top
14.  80MM Walls Insulation provided
16. Quick freezing function
17.  offered equal to 4 x star rated and T climate class with A+ / A energy class product
18, Suitable for fixing optional temperature alarms
19. Climate class : T
20. Freezer prevents the frost loss from open door
21. Frost free.
22. Optional facility for fixing the alarms like door opening/ acoustic.
23. Equipped with the feature like remote alarm.
24. Battery / Power back device & controlled power supply shall be provided.
25. 7- 8 sealed shelves/ removable drawers with flaps & including one for Ice along with Ice tray offered.
26. Door Lock with lock.
27.Gross volume  is arr.400 liters. Approximate weight shall be less than 85 kgs.
28. Internal  inbuilt  light  is offered.
29. Drawer with flaps to prevent the temperature loss and holds temp. for longer period provided
30. Inbuilt/Stabilisers is optional.

Medical / Life Science’s Products & Refrigeration Solution:

We offer :

* -20 deg C  to -86 deg C ultra-low freezers and +2 deg c  to+8 deg c Refrigerators .

*Ice lined Refrigerators & freezers of International standard confirming to our medical and life science products ensure precise temperature control for sensitive applications in Laboratories, healthcare facilities, and pharmaceutical companies.

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 1

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 2

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 3

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 4

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 5

DIMLFPRS - 6

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 6

DIMLFPRS - 7

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 7

DIMLFPRS - 8

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 8

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 9

DIMLFPRS - 10

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 10

DIMLFPRS - 11

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 11

DIMLFPRS - 12

Medical / Life Science’s Products & Refrigeration Solution DIMLFPRS - 12

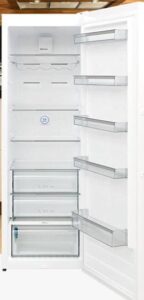

Vertical Laboratory Refrigerator
1. Designed/meant for laboratory / Research centres /Hospital /Clinical and for the scientist & General  use.
2 Temperature range of + 2 deg C to + 8deg  C  temperature
3. Energy consumption of approximately 0.39 / 0.48Kwatt/ 24hrs.
4. CFC free R 600 A  refrigerant and CycloPentane as blowing agent for insulation’
5. Compatible for data logger for recording temperature parameters’
6. Static /Microprocessor refrigeration system and condenser type, with natural / forced type of airflow’
7. Single hard door with Door handle and should have the option for reversibility & with lock& key.
8. Unit with rear rollers and levelling feet’
9. With adjustable shelves,
10. Maintain uniform temperature in the cabinet’
11. NABL certified unit acn be provided.
12. Compatible microprocessor controller /audio visual alarm system should be quoted as optional items for refrigerator
13. Control Panel on the top’
14. Suitable light should be inbuilt in the unit.
15. Walls Insulation should be  80 mm.
16. Refrigerator prevents the frost loss from open door
17. 4 x star rating and withA+ / A energy class’
18, Suitable for fixing optional temperature alarms
19. Climate class : T
20. 6 No shelves with one sealed  removable drawers & basket provided.
21. Provision of accommodating 6 -8 additional shelves.
22. Optional facility for fixing the alarms like door opening/ acoustic.
23. Five Bottle  holders including one sealed shelf in the  Door provided.
24. Battery / Power back Device and controlled power supply provided.
25. Equipped with the feature like remote alarm.
26. Auto Defrost System /Frost free
27.Gross volume of 370 liters, with 23 x23 x73″ (L xWxD) approximate dimensions and not more than 85 kgs in weight’
28. Provision of SS 304 storage shelf/pan is provided


Key Features:

  • NABL calibration for accuracy.
  • Advanced temperature monitoring and control.
  • Customizable storage solutions.

Benefits:

  • Compliance with regulatory standards.
  • Reliable preservation of medical and scientific samples.
  • Flexible configurations for diverse storage needs.
